| Brand | Lauritz Knudsen |
|---|---|
| Rated Operational Current (A) | 100A |
| Standards Conformance | IS/IEC 60947-3, EN 60947-3 |
| Fuse Type | DIN / Knife-edge |
| Utilization Category | AC-23A |
| Rated Operational Voltage (Ue) | 415V |
| Frequency | 50/60 Hz |
| Mechanical Life | 15,000 cycles |
| Insulation Voltage (Ui) | 690V |
| Breaking Capacity @ AC-23A | 800A |
| Making Capacity @ AC-23A | 1000A |
| Enclosure Version | Stainless Steel (SS) |
| No. of Poles | TPN |
| Max. Aluminium Termination | 95 sq.mm |
| Mounting Positions | All orientations |
| Accessories | Terminal Shrouds, Phase Barriers, Extended Handle with Shaft |
L & T Electrical & Automation Products
Get Quote on WhatsApp

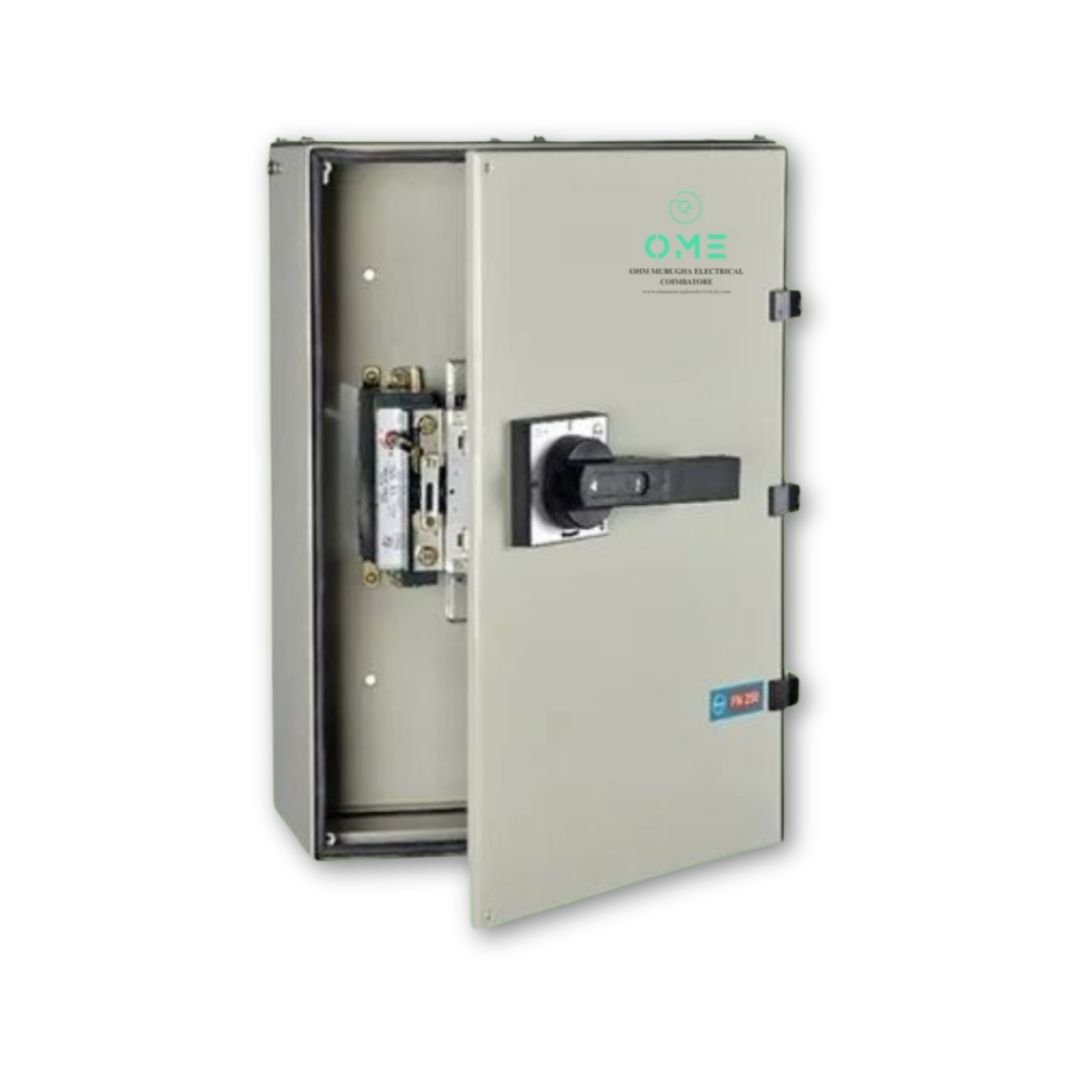

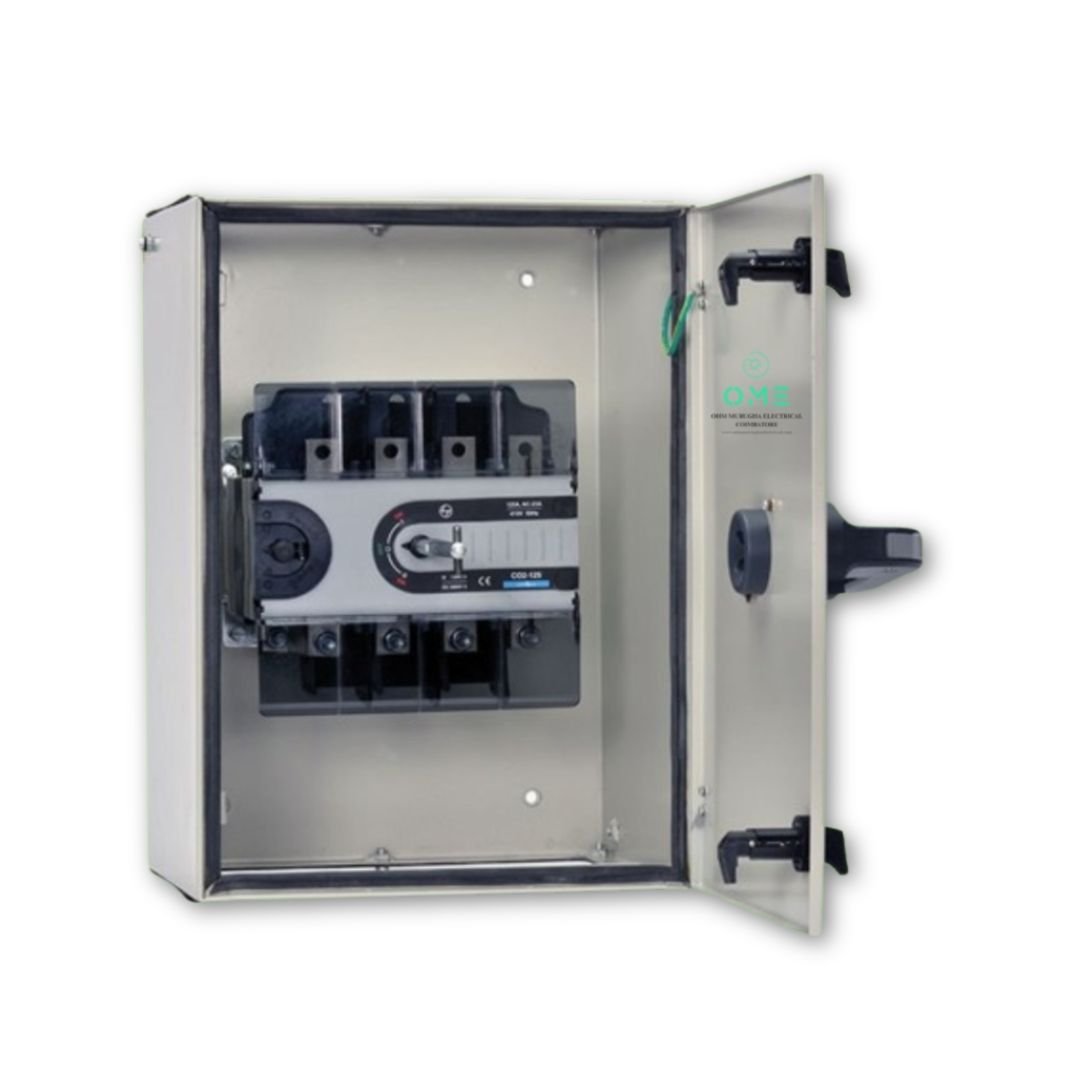

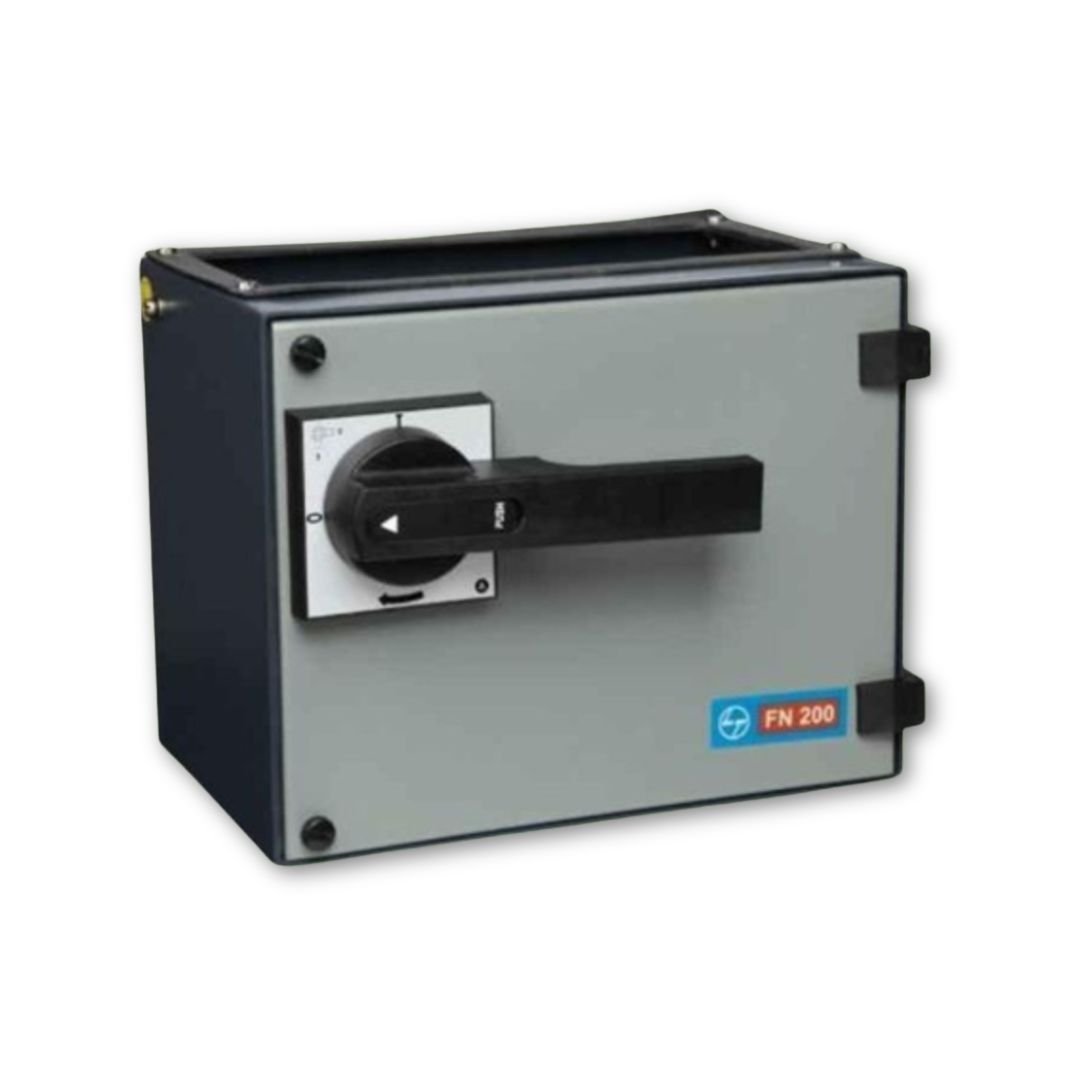

L&T FN Switch with Enclosure
The L&T FN Switch with Enclosure (100A, TPN, SS version) is a durable and reliable switch disconnector designed to meet demanding industrial applications. Built with high-quality standards and designed for safety, this switch ensures reliable performance, long mechanical life, and compliance with international norms.
The L&T FN Switch with Enclosure is engineered to deliver consistent performance under rigorous conditions. Its robust stainless-steel enclosure ensures durability, while the high breaking and making capacities make it ideal for heavy-duty operations. With compliance to IS/IEC and EN standards, this switch guarantees safe and reliable disconnection every time.
Specifications
- Brand
- L & T Electrical & Automation Products
- Availability
- In stock
Key features
-
Rated Operational Current (A): 100A
-
Conformance to Standards: IS/IEC 60947-3, EN 60947-3
-
Fuse Type: DIN / Knife-edge
-
Utilization Category: AC-23A
-
Rated Operational Voltage (Ue): 415V
-
Operating Frequency: 50/60 Hz
-
Mechanical Life: 15,000 operating cycles
-
Rated Insulation Voltage (Ui): 690V
-
Rated Breaking Capacity @ AC-23A: 800A
-
Rated Making Capacity @ AC-23A: 1000A
-
Enclosure Version: Stainless Steel (SS)
-
No. of Poles: TPN
-
Max. Aluminium Termination: 95 sq.mm
-
Mounting Positions: All orientations
-
Standard Accessories: Terminal Shrouds, Phase Barriers, Extended Handle with Shaft
Applications
-
Industrial power distribution systems
-
Commercial electrical panels
-
Heavy machinery and motor control
-
Utility and power management setups
-
Safety-critical switch disconnection applications
